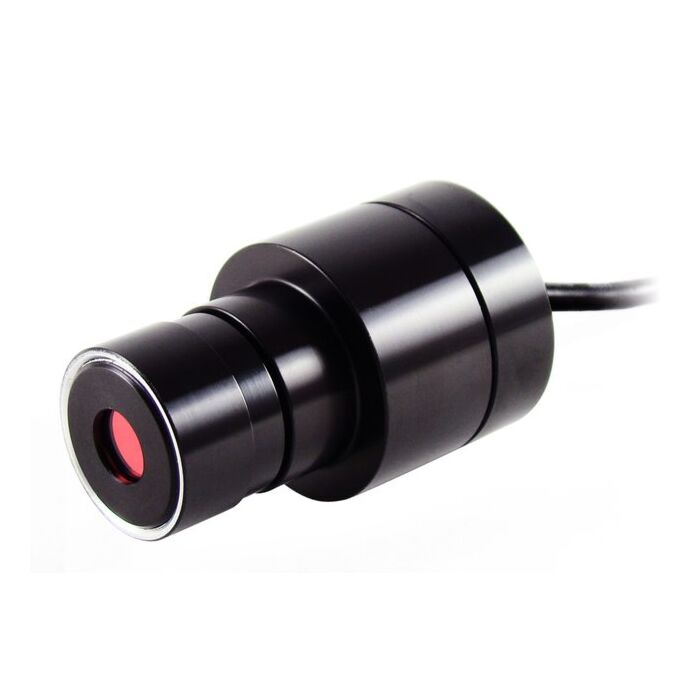

De DinoEye is een serie van digitale oculaircamera's. U kunt het oculair van reguliere microscopen vervangen door de Dino-Eye, zodat de gewone microscoop een digitale microscoop wordt. De AM4023 kan direct op uw computer worden aangesloten en is geschikt voor microscopen met een oculair van 23mm. De DinoCapture software wordt meegeleverd.

DinoEye Eyepieces Optics
Built-in magnification: Yes
Lens type: Glass with Anti-Reflection coating

Sensor
Sensor Type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

Dimensions
Mounting type: Inside ocular/tube
Ocular inner diameter: 23 mm
Dimensions: 48 mm (H) x 23 mm (D)
Weight: 95 g
Cable length: 1.8 m


Compatibility
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.4 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC

Features
Measurement: Yes
Calibration: Yes
Microtouch sensor: No
Housing material: Metal body
Package contents: DinoEye eyepiece camera, Carry Pouch, Software CD, Calibration Target, User Manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
